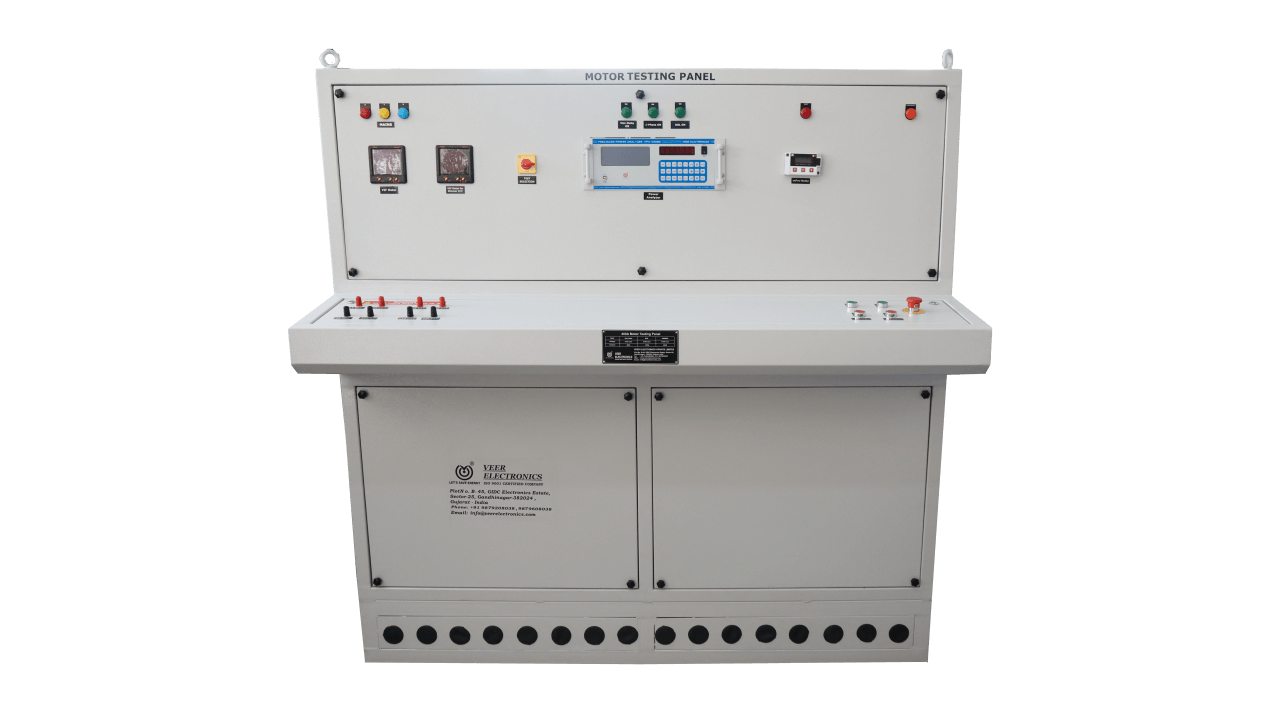

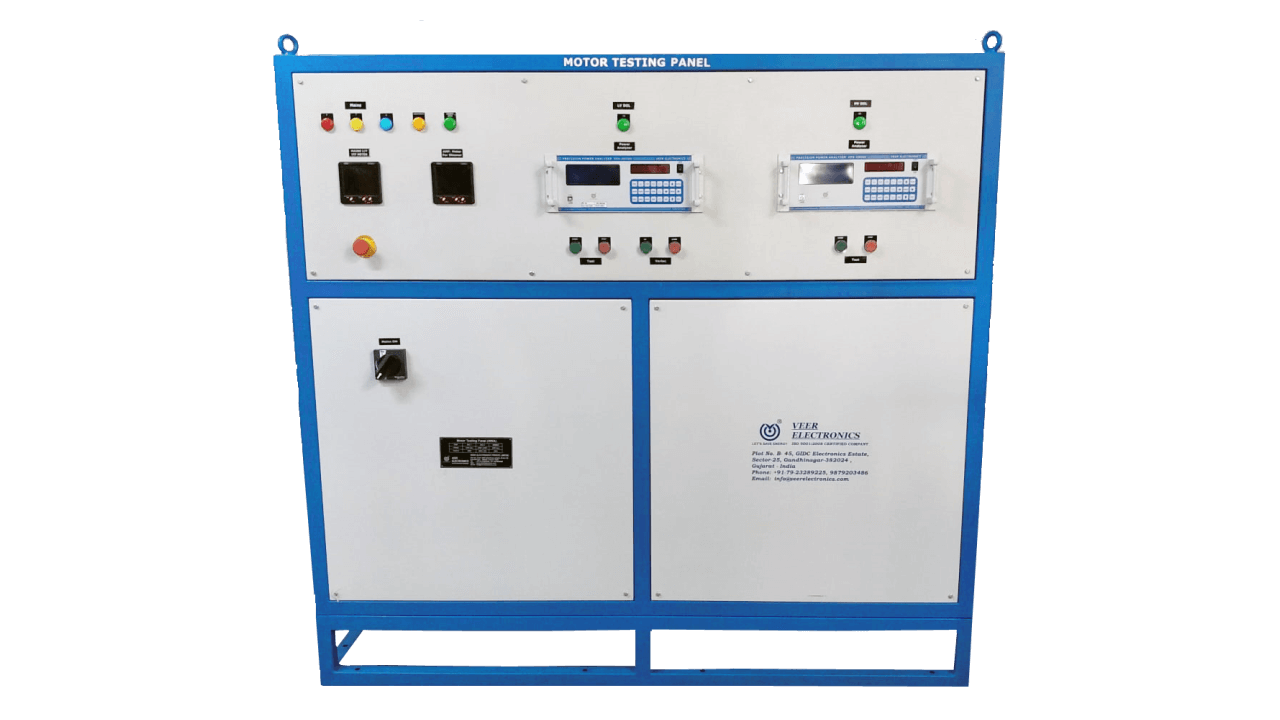

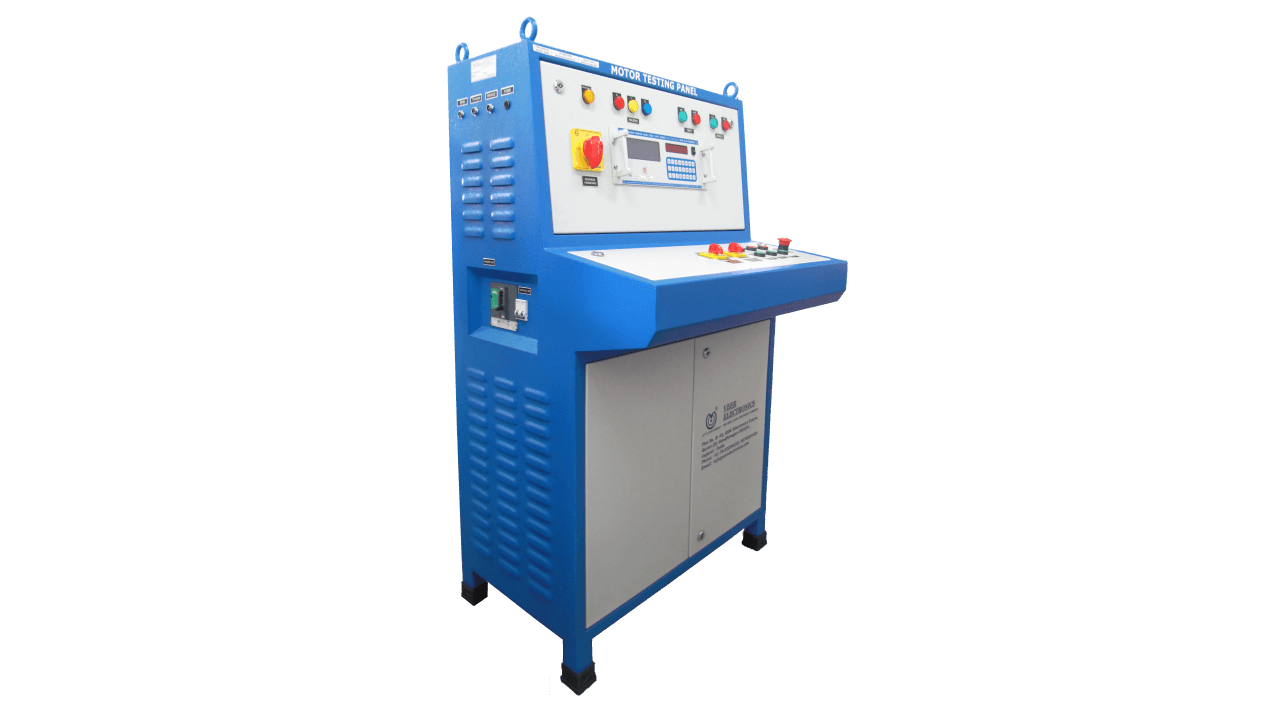

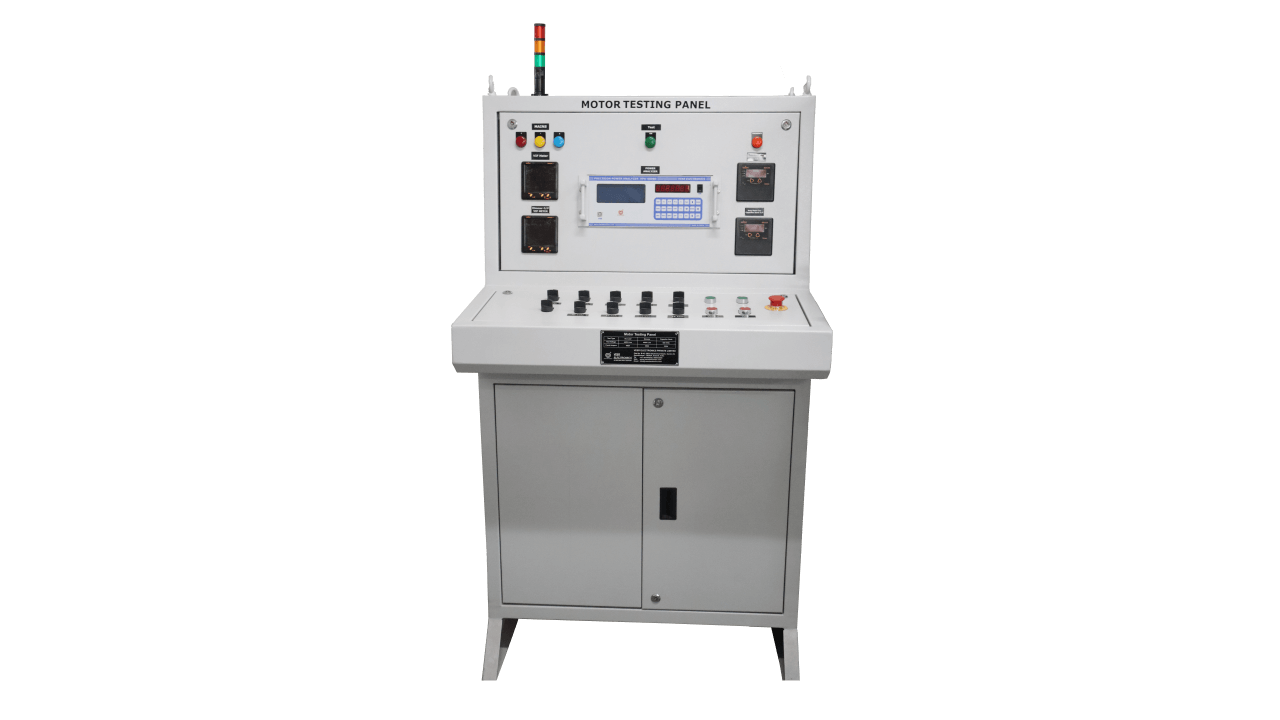

Motor Testing Panel-VMTP

It covers No Load Test, Full Load Test, Block Rotor Test, Temperature Rise Test, Reduce Voltage Test, Pull Up Test, Momentary Over load Test for 3-Phase & 1-Phase Motor
It measures Voltage, Current, Power, Apparent Power, Reactive Power, Power Factor (PF), Frequency, RPM, Corrected RPM, %Slip, Torque with correction, Output Power, Efficiency of Motor
Torque Correction as per IS:12615

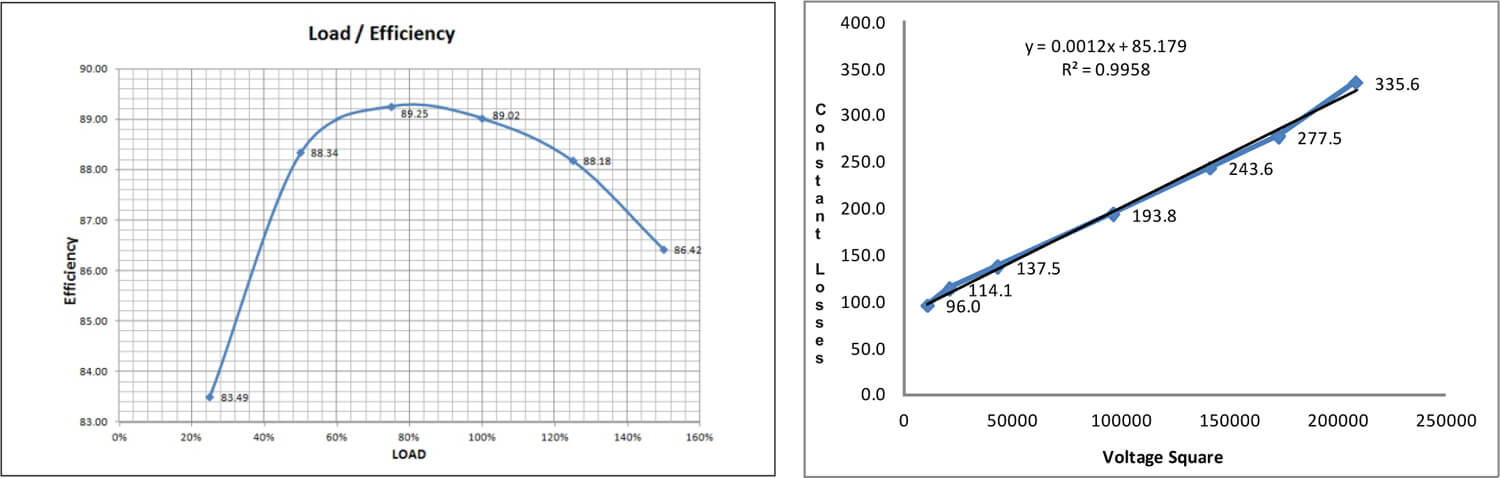

Efficiency by direct method & additional summation losses (PLL) from residual losses as per IS 15999 (Part 2/ SEC1)
Provision of Change Over Switch for 1-Phase, DOL, Star-Delta Starter as required
Phase Change Over for CW & CCW Motor Rotation as required
Push Buttons to Increase & Decrease Voltage Output of Variac, Emergency Stop Push Button
Excitation Unit for Dynamometer

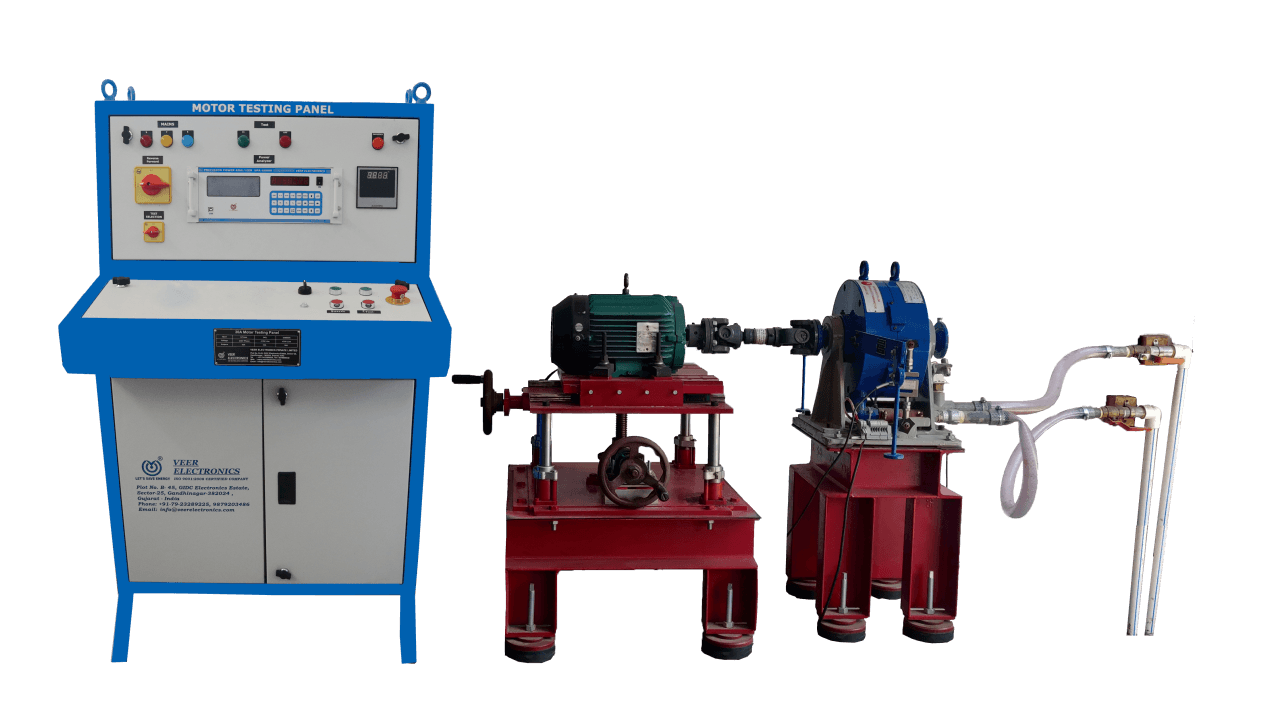

Water Cooled Eddy Current Dynamometer with Test Bed (AC/ DC Dynamometer with Load Bank on request)

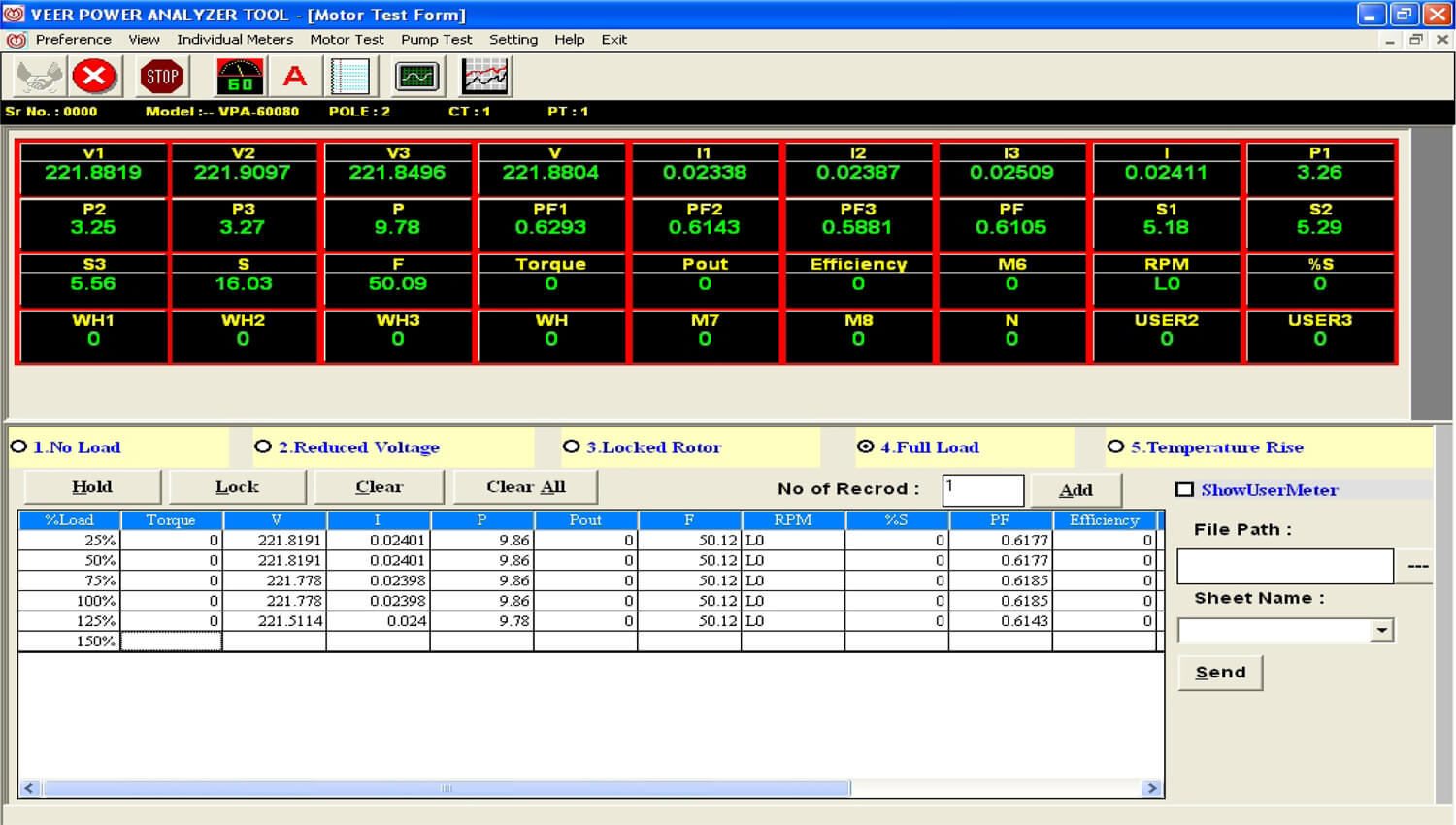

USB, RS-232 / RS-485 Interface & Free Demo Software
500 Test Data Storage Inbuilt in Power Analyzer
Current Rating 30A/ 50A/ 75A/ 100A/ 150A/ 200A/ 300A (>300A On Request)
Basic ±0.1% Accurate Power Analyzer

Useful for Motor Manufacturers, Motor Repairing Shop, Electrical Maintenance Department in Various Industries
Useful in Research Lab, Testing Lab, Electrical Machines Lab in Engineering Colleges etc.
